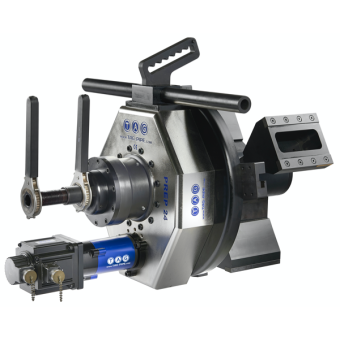

TAG Pipe beveler PREP 24 for pipes 7-24" (180-604mm)
- Sign up and get a discount
- Free training for proper machine usage
- Warranty and post warranty servis
- Professional advice
Have a question regarding our products?
02/60103721
| Rental price list | Price without VAT | Price with VAT |
| Rental fee for 1 day | 0.00 € | 0.00 € |
| Rental fee over 7 days | 0.00 € | 0.00 € |
| Rental fee over 30 days | 0.00 € | 0.00 € |
TAG Pipe beveler PREP 24 for pipes 7-24" (180-604mm)
A powerful electric or pneumatic motor drives a reduction gear that converts 3.5 HP into 12500 Nm of torque!
The 6-point clamping system allows the PREP 24 to cover an impressive range of 7" - 24".
The clamping and chamfering parts are ratcheted, which makes it easy for the operator to clamp in seconds and ensures a consistent feed in the longitudinal direction for a perfect finish even on thick-walled pipes.
A pneumatic or electric version is available.
Material:
Any type of steel and cast iron
Features:
| External bevel |
| Internal bevel |
| Edge chamfering |
| Removing welds |
| Pneumatic | Electric | |
| Application range (mm) | 180-604 mm /7-24,0" | 180-604 mm /7-24,0" |
| Speed (rpm) | 2-9 | 2-9 |
| Torque | 12,500 | 12,500 |
| Axial feed length (mm) | 60 | 60 |
| Maximum operating temperature (°C) | 55 | 60 |
| Noise max. (dB) | 75 | 45 |
| Pneumatic motor power (hp) | 3,5 | - |
| Air consumption (cfm/ l/min.) | 90/2500 | - |
| Working air pressure (psi/bar) | 90/6.5 | - |
| Air hose connection (col) | 3/4" | - |
| Electric motor power (kW) | - | 1.5 |
| Voltage (V) | - | 110/220 |
| Frequency (Hz) | - | 50/60 |
| Machine weight (kg) | 214 | 216 |
| Package dimensions (mm) | 1200 x 840 x 910 | 1200 x 840 x 910 |
| Package weight (kg) | 412 | 424 |
The machine is supplied with all clamping jaws to cover the entire range of the machine. A service tool is also included in the package.
