TAG pipe beveler PREP 16 for pipes 3-16" (72-406mm)
- Sign up and get a discount
- Free training for proper machine usage
- Warranty and post warranty servis
- Professional advice
| Rental price list | Price without VAT | Price with VAT |
| Rental fee for 1 day | 0.00 € | 0.00 € |
| Rental fee over 7 days | 0.00 € | 0.00 € |
| Rental fee over 30 days | 0.00 € | 0.00 € |

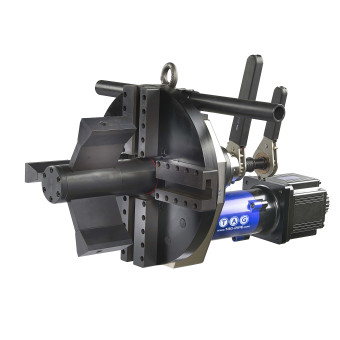

TAG pipe beveler PREP 16 for pipes 3-16" (72-406mm)
The PREP 16 is the first in the new TAG line of heavy-duty bevelers for medium diameter pipes.
This miter saw features a ratcheting jaw clamp as well as feed bevel control for trouble-free beveling of thick-walled pipes. Available with pneumatic or electric drive and an impressive range of 3" - 16".
Thanks to 4 reinforced multi-position tool holders, PREP 16 can be used for several operations at the same time.
Low weight and unrivaled performance make this miter saw suitable for applications where perfect preparation for welding is required.
The PREP 16, PREP 20 and PREP 24 allow the operator to set up smoothly and work consistently with minimal effort.
Material:
Any type of steel and cast iron
Features:
| External bevel |
| Internal bevel |
| Edge chamfering |
| Removing welds |
Features:
| Pneumatic | Electric | |
| Application Range (mm) | 72-406 mm/2,8-16" |
72-406 mm/2,8-16" |
| Speeds (rpm) | 11 - 21 | 2 - 21 |
| Torque | 1770+ | 1770+ |
| Axial feed length (mm) | 50 | 50 |
| Maximum operating temperature (°C) | 55 | 35 |
| Noise max. (dB) | 75 | 75 |
| Pneumatic motor power (hp) | 3.5 | - |
| Air consumption (cfm/ l/min.) |
90/2500 | - |
| Working air pressure (psi/bar) | 90/6.5 | - |
| Air hose connection (col) | 3/4" | - |
| Electric motor power (kW) | - | 1.5 |
| Voltage (V) | - | 110/220 |
| Frequency (Hz) | - | 50/60 |
| Machine weight (kg) | 43 | 44 |
| Package dimensions (mm) | 860 x 570 x 50 | 860 x 570 x 530 |
| Package weight (kg) | 128 | 140 |
The machine is supplied with all clamping jaws to cover the entire range of the machine. A service tool is also included in the package. The machine is packed in a wooden protective box.
