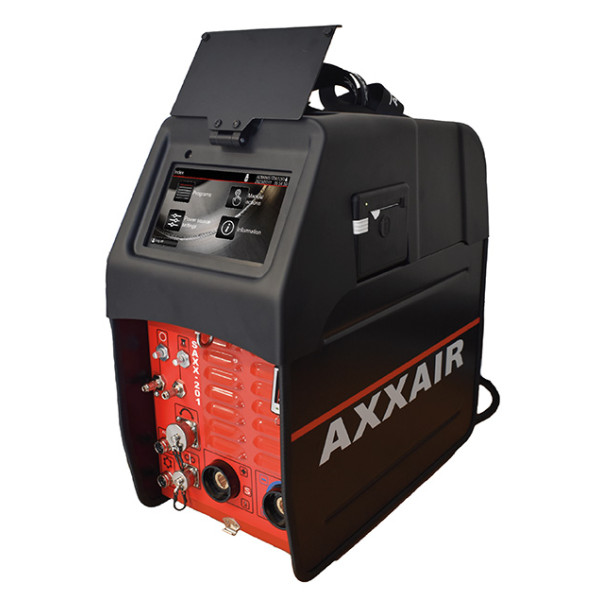

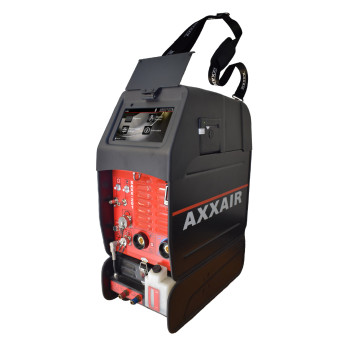

AXXAIR Orbital welding source SAXX-201

AXXAIR Orbital welding source SAXX-201

The latest generation, easy-to-use welding power source with simple, intuitive programming and complete data collection, including data from the welding head and about internal gas flows. Stores welding programs and user profiles (operator, welder and administrator). The system monitors and saves welding parameters every second. The data can be viewed directly on the 7" screen, or through the supplied "WeldData" software, which can be converted into several formats.a

Technical characteristics:

 TIG orbital welding source, 200A, autoline

• Welding current type: DC
• Supply voltage: Single-phase main with earth, 110 to 230 V +/- 15%, 50/60 Hz
• Duty cycle: 200A / 25% at 230V | 140A / 35% at 110V; 115A / 100% at 230V | 100A / 100% at 110V
• IP standard: IP21
• Data collection: USB stick
• Alarms: Arc Voltage Sensors, Gas Flow Sensors, Coolant Sensors, Inverter Operation Alarm, Motorization Alarm (Machine and Wire Feeder)
• Screen size: 7"
• Languages: French, English, German, Spanish, Italian, Russian, Chinese, Korean, Japanese, Turkish, Dutch, Polish, Portuguese, Slovak and Hungarian
• Industry 4.0 connection: Ethernet port / Wifi (optional)
• Weight: 21 kg
• Dimensions in mm: 482 x 249 x 468 (H x W x D)
• Handle and strap for easy transport
• Screen protection
• Intuitive and simple programming: Automatic calculation of parameters and help with programming - 7" color touch screen, multilingual menu, 3 login levels (operator, welder and administrator)
• Two independent gas lines with flow control (optional): Welding torch gas control and optional internal inert gas flow control
• Wire feeder connector (optional): for synchronizing the wire feed with the current pulse
• Wifi (optional): Remote control via smartphone or tablet - Send and receive data
• Integrated printer: Print programs and current parameters
• Data collection on a USB stick: Stores welding programs and user profiles. The system monitors and saves welding parameters every second. The data can be viewed directly on the screen or via the supplied "WeldData" software, which can be converted to DMOS/QMOS format.
• Removable water cooling system: Cooling power 700W, flow mini alarm. It can be separated without the use of tools, making the power supply extremely portable.
